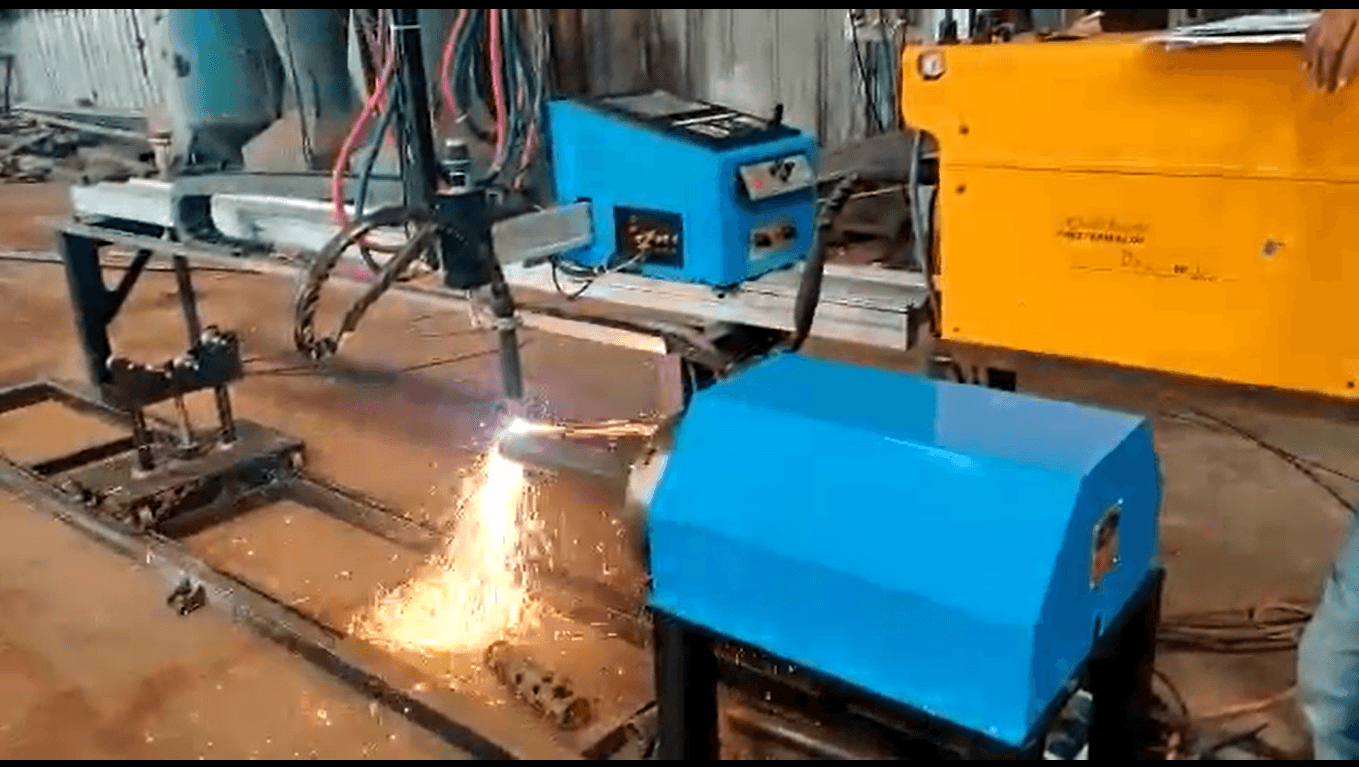

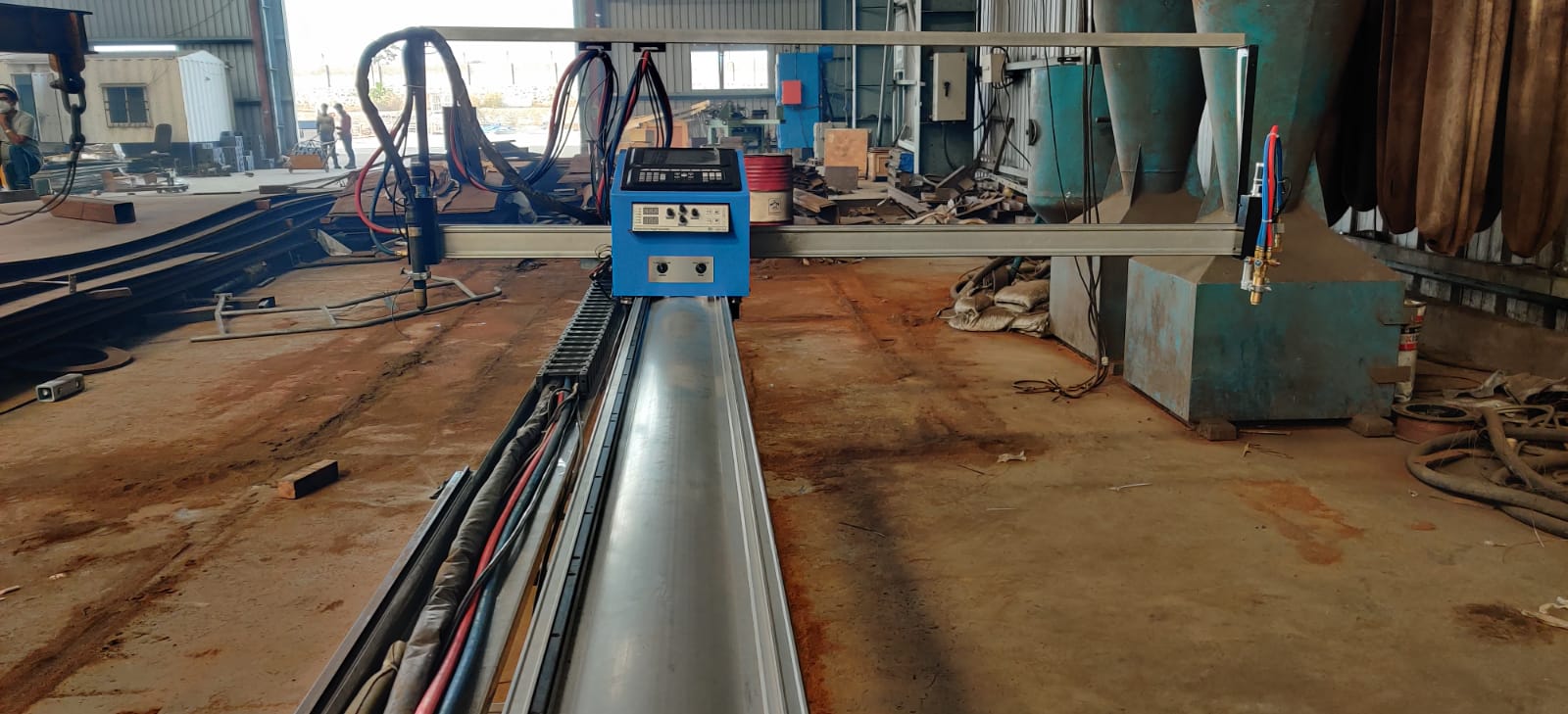

A CNC Plasma Plate & Pipe Cutting Machine is a versatile solution engineered to handle both flat plate cutting and round pipe cutting with precision. Instead of investing in separate machines for plates and pipes, manufacturers can integrate both functions in one system, improving efficiency and lowering operational costs.
These machines are widely used in industries where multi-dimensional cutting is required, such as construction, fabrication, shipbuilding, automotive, oil & gas, and energy. Built with robust plasma technology and advanced CNC controls, they provide accuracy, speed, and flexibility while handling different material shapes and thicknesses.
Metweld’s CNC plasma systems are designed for industries that demand high performance with versatility. The dual cutting functionality of plate and pipe makes these machines highly efficient and adaptable for modern production environments.
Key features include:
1. Dual Cutting Capability – Cuts both flat sheets and round/cylindrical pipes, eliminating the need for separate equipment.
2. Heavy-Duty Construction – Robust frame design ensures vibration-free cutting for plates and pipes of various diameters.
3. Wide Thickness Range – Handles thin sheets as well as thick plates and pipes, depending on the plasma power source.
4. Advanced CNC Controls – Provides accuracy and repeatability, even for complex geometries and profile designs.

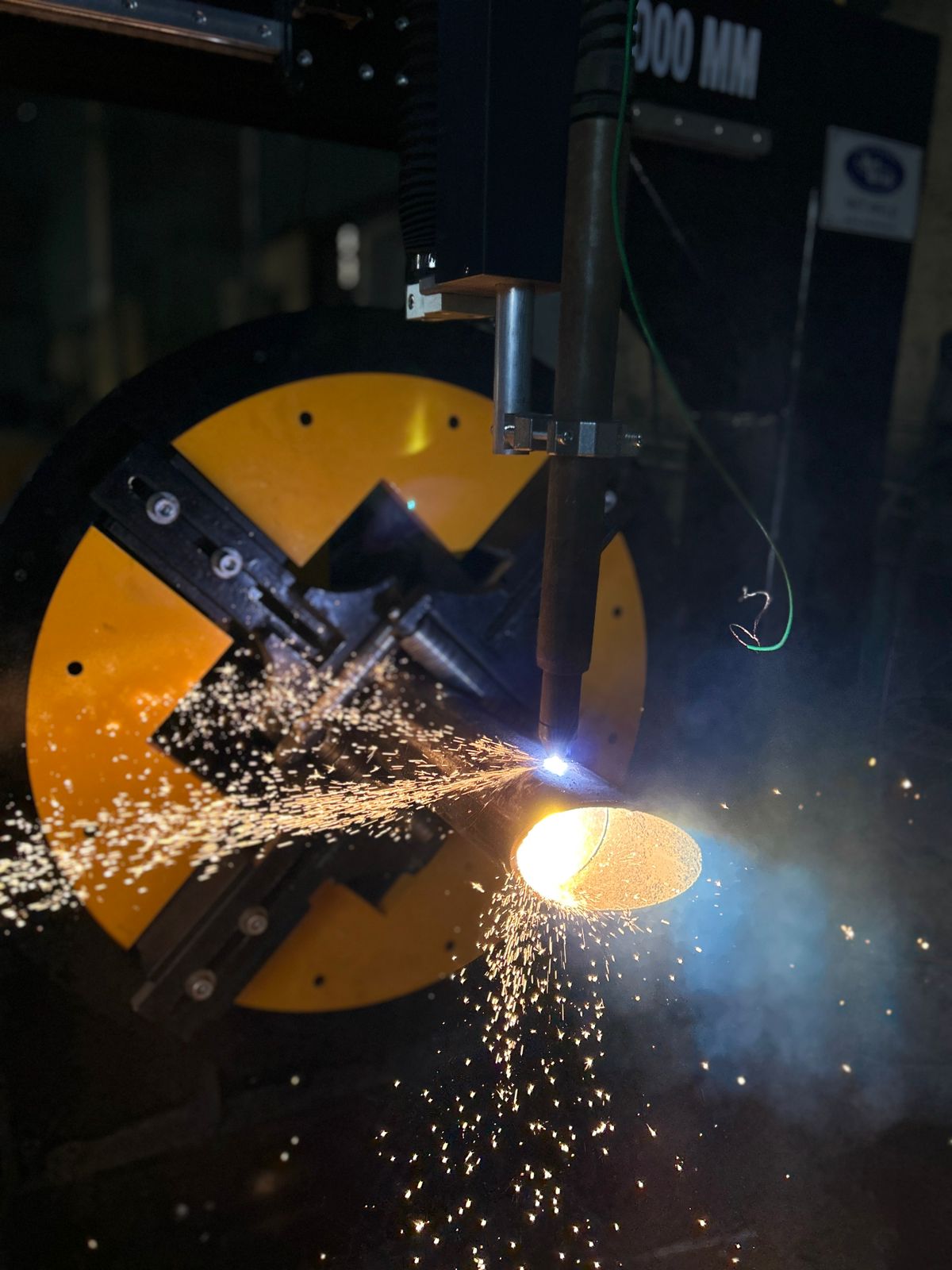

5. Rotary Axis for Pipe Cutting – Integrated rotary attachment allows smooth and accurate pipe cutting operations.
6. Material Flexibility – Suitable for stainless steel, carbon steel, aluminum, and other conductive metals.
7. Efficient Nesting Software – Reduces wastage by optimizing layouts for plate cutting.
8. Multi-Torch Options – Option for dual torches to increase productivity and reduce cycle time.
9. Ease of Use – Operator-friendly interface and CAD/CAM compatibility streamline the design-to-cutting process.
10. Optional Oxy-Fuel Integration – For cutting thicker plates economically.
The integration of plate and pipe cutting in one CNC system offers flexibility that most fabrication shops and industries find invaluable, particularly when handling diverse projects.
The applications of these machines are extensive because they serve two major functions in one system: sheet metal cutting and pipe profile cutting.
In construction and infrastructure projects, they are used to cut large steel plates for structural elements, while also cutting pipes for frameworks, pipelines, and supporting structures.
In the oil & gas industry, pipelines are essential, and CNC plasma plate & pipe cutting machines ensure precise cuts for both flanges and pipe fittings.
Some of the most common applications include:
• Fabrication Industry – Cutting plates for frames, brackets, and custom sheet designs, along with pipe profiles for structures.
• Automotive & Heavy Equipment – Processing both plate and tubular components used in chassis, frames, and machinery.
• Shipbuilding & Marine – Cutting massive plates for hulls and decks, as well as pipes used in marine infrastructure.
• Railway & Transport – Manufacturing wagon and locomotive parts along with pipe-based structures.
• Energy Sector – Fabricating parts for wind turbines, oil rigs, and renewable power systems.
• Custom Metal Work – Producing decorative and industrial components where both sheet and pipe cutting are required.
This combination of plate and pipe processing makes the machine a perfect fit for industries that need multi-purpose capability without investing in multiple systems.
When industries choose Metweld, they gain access to globally engineered CNC cutting machines that combine innovation, durability, and ease of use.
Key reasons to choose Metweld:
• Integrated Dual Functionality – Metweld machines allow both plate and pipe cutting with one setup, maximizing productivity.
• High Accuracy & Reliability – Advanced CNC control ensures precision and repeatability in both flat and round material cutting.
• Customizable Configurations – Machines are available with different table sizes, rotary axis options, and torch configurations.
• Durable Engineering – Built with rigid frames and heavy-duty components to withstand demanding industrial use.
• Global-Standard Quality – Manufactured and tested to meet international benchmarks for performance.
• Productivity-Driven – Capable of handling high-volume production runs while maintaining consistent accuracy.
• Ease of Integration – Seamlessly connects with CAD/CAM systems, reducing design-to-production time.
• Comprehensive Support – Includes training, installation assistance, after-sales service, and spare parts availability.
Metweld’s machines are trusted across industries because they are designed to solve practical challenges, enabling companies to achieve higher efficiency at lower costs.
These machines bring unique advantages over traditional single-function equipment:
1. Two-in-One Functionality – Cuts both flat plates and pipes, reducing equipment investment.
2. Space Saving – A single machine occupies less floor space than having separate plate and pipe cutters.
3. Cost Efficiency – Lower capital expenditure and reduced per-part cost improve ROI.
4. Flexibility – Handles a wide variety of jobs from sheet metal fabrication to pipe construction.
5. Time Saving – Eliminates the need to shift materials between machines, improving workflow efficiency.
6. Scalability – Suitable for both small workshops and large-scale industrial production.
7. Operator Convenience – Easy to program, quick to set up, and requires minimal operator intervention.
By offering greater flexibility and efficiency, these machines allow businesses to meet diverse customer demands without additional investments.
| Process | Gas Cutting, Plasma Cutting |
|---|---|
| Effective cutting width | 1.5 m to 3 m |
| Effective cutting length | 3 m to 20 m |
| Positioning speed | 0 – 10,000 mm/min |
| Cutting thickness | 1.5 mm – 30 mm MS by plasma cutting 1 mm – 28 mm SS by plasma cutting 6 mm – 150 mm MS by gas cutting |
Since the year 1982, MET WELD holds a strong presence and offered a comprehensive range of CNC Plasma Cutting Machine and Welding, Cutting Equipment in various sectors of industry.
