In the highly competitive world of heavy metal fabrication, Pre-Engineered Buildings (PEB), and massive structural engineering, standard sheet metal machinery simply cannot keep up with production demands. When your factory floor is processing massive steel sheets, exceptionally thick structural plates, and oversized custom components, you cannot afford the structural vibration, severe load limitations, or dimensional inaccuracies that plague lightweight or traditional cantilever-style cutting machines.

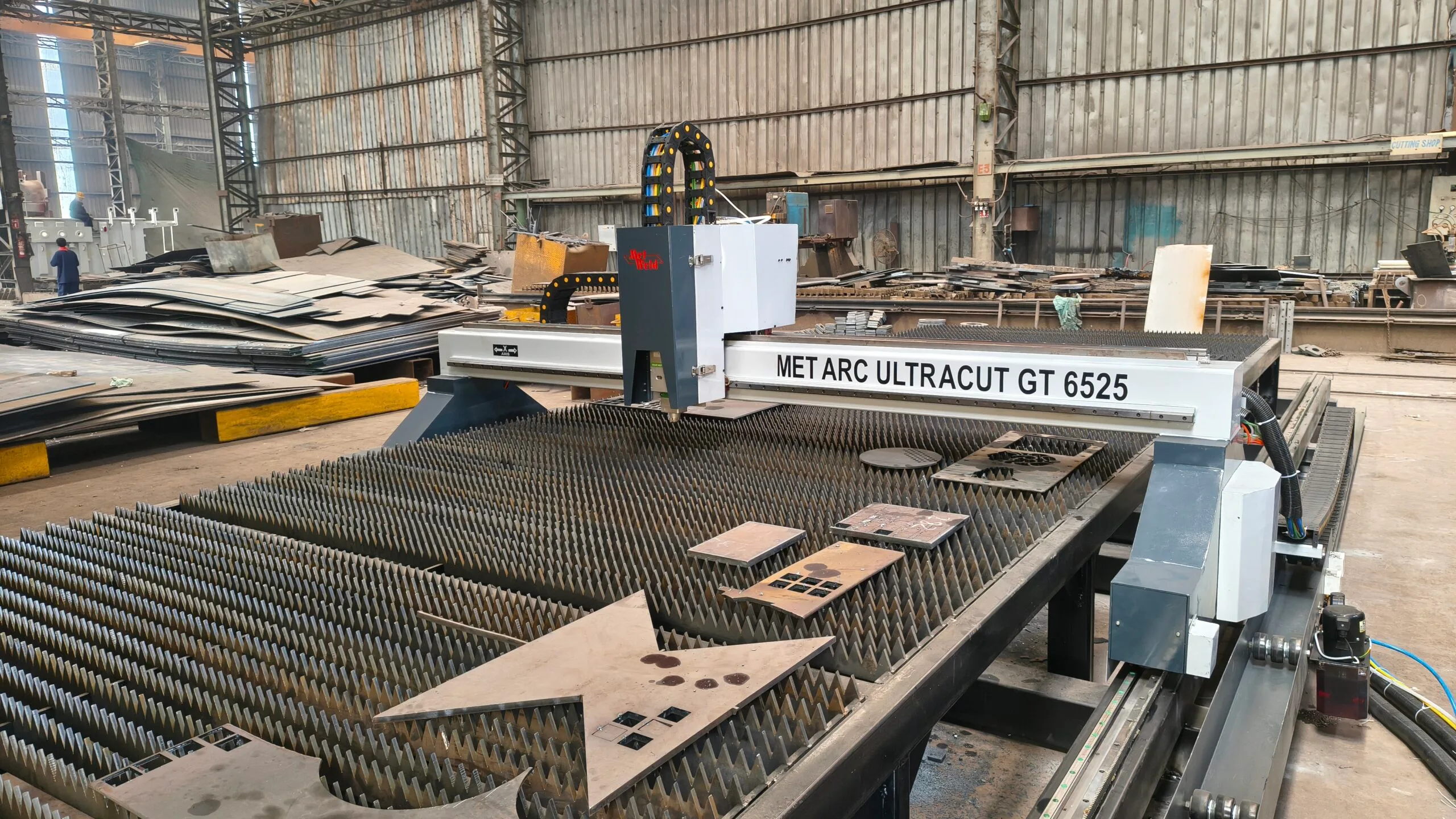

Modern infrastructure projects demand tighter tolerances, faster turnaround times, and zero room for error. To meet these strict industry standards while maintaining healthy profit margins, you need a machine engineered from the ground up for raw scale, absolute stability, and continuous operation. You need the unparalleled power of the Metweld Gantry-Type CNC Laser Cutting Machine.
Designed specifically for demanding industrial environments that require 24/7 production cycles, our gantry (bridge-type) laser systems offer a complete paradigm shift in how heavy materials are processed. By anchoring the precision laser cutting head to a massive, dual-drive bridge structure, we have successfully eliminated the mechanical weaknesses of traditional machines. This architectural advantage delivers flawless edge quality, lightning-fast high-speed X-Y traverse rates, and the physical capacity to process the absolute heaviest steel plates your factory floor can handle.
Whether you are fabricating massive continuous PEB rafters, heavy-duty base plates for high-rise columns, or complex, thick-gauge components for earthmoving equipment, Metweld delivers the surgical precision of an advanced laser paired seamlessly with the rugged, unrelenting durability of a heavy industrial mill.
Investing in a Gantry-Type CNC Laser is not just a machinery upgrade; it is a strategic investment in your shop floor’s long-term profitability and competitive advantage. Here is a deep dive into how the Metweld gantry architecture transforms your production capabilities:

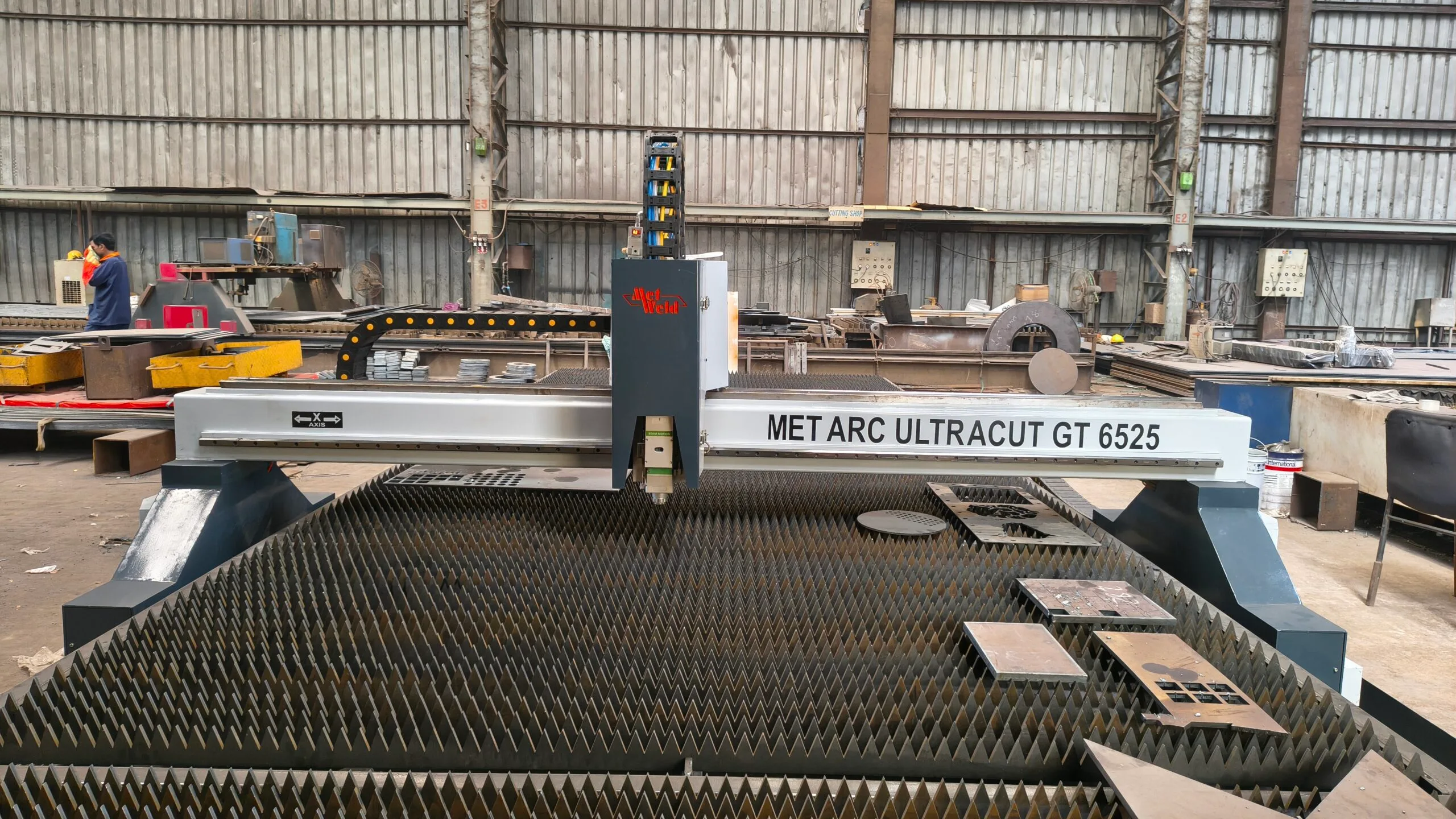

The fundamental engineering foundation of the gantry machine is its bridge-type design. Unlike cantilever machines that support the heavy cutting arm from only one side—which inevitably leads to microscopic sagging and torsion over time—a gantry structure supports the cutting head across a rigid, dual-rail bridge spanning the entire width of the cutting bed.
This dual-support system is driven by synchronized servo motors on both sides of the Y-axis. This exceptional, balanced rigidity means the machine maintains flawless dimensional accuracy, even during rapid directional changes or when cutting highly complex, intricate geometric designs. The laser stays perfectly perpendicular to the material at all times. Your structural parts are cut precisely to spec, every single time, ensuring flawless fit-up during the final assembly or welding phase.
Standard footprint machines frequently become massive production bottlenecks when tasked with oversized materials. Fabricators are often forced to cut down large sheets manually before loading them, wasting hours of manpower. Metweld Gantry Lasers are uniquely engineered for large-format metal sheets and heavy-duty fabrication work right out of the box.
This massive continuous working envelope makes them the perfect—and often the only—viable solution for heavy industries like PEB construction, shipbuilding, and heavy infrastructure engineering. By processing full-sized 12-meter or 16-meter plates in a single run, you drastically reduce material handling time, minimize crane usage, and avoid the structural compromises that come with joining smaller cut plates together.
In industrial fabrication, cutting speed means nothing if your edge quality is so poor that it requires hours of manual rework. Our gantry systems utilize high-speed, synchronized dual-servo motors paired with precision helical rack and pinion drives for rapid movement across the X-Y axis.
Because the heavy bridge structure remains perfectly stable and immune to twisting at high acceleration speeds, the laser beam focus remains absolute. This delivers a remarkably smooth cutting finish with an incredibly narrow kerf. The highly concentrated thermal energy melts and clears the metal instantly, leaving a minimal-burr, dross-free edge. This pristine cut quality drastically reduces—and often completely eliminates—the need for costly, time-consuming secondary finishing, grinding, and deburring, allowing parts to move directly from the cutting bed to the welding station.
Heavy structural steel plates require a machine bed that will absolutely not bow, warp, or sag under extreme weight pressure. A compromised bed leads to focal length variations, which ruins cut quality. Our gantry machines feature immensely heavy-duty welded machine beds.
These frames undergo rigorous thermal annealing and stress-relief processes during manufacturing to ensure they maintain their geometry under the heaviest industrial loads. They can comfortably handle exponentially heavier materials compared to smaller footprint machines. This provides a permanently stable, secure platform for processing extraordinarily thick carbon steel plates and large-scale industrial jobs without transferring any stress to the machine’s delicate linear guides or drive systems.
We understand that no two fabrication floors or production lines are exactly alike. Because the gantry design is inherently modular in its rail length, Metweld offers complete, uncompromised flexibility in cutting size.
We offer fully customizable table sizes tailored specifically to your exact floor space and production requirements. Whether you require a standard oversized bed for processing high volumes of standard plates, or an exceptionally long, custom-extended bed designed specifically to cut continuous structural rafters without repositioning the steel, we can build it. This scalability makes our machines equally suitable for highly specialized, small-batch custom runs and massive, multi-shift continuous production cycles.
Kinetic vibration is the absolute enemy of laser precision. Even microscopic tremors translating through a machine’s frame can cause visible striations, rough edges, or dimensional deviations on a laser cut.
Due to the sheer mass, intelligent weight distribution, and robust structural engineering of the strong gantry frame, kinetic energy is inherently dampened. This results in almost zero vibration during high-speed, high-acceleration operation. This extreme stability directly translates into superior cut edge quality. When the laser head does not vibrate, the cut is exceptionally clean, ensuring your structural components maintain the strict tolerances required by international building codes.

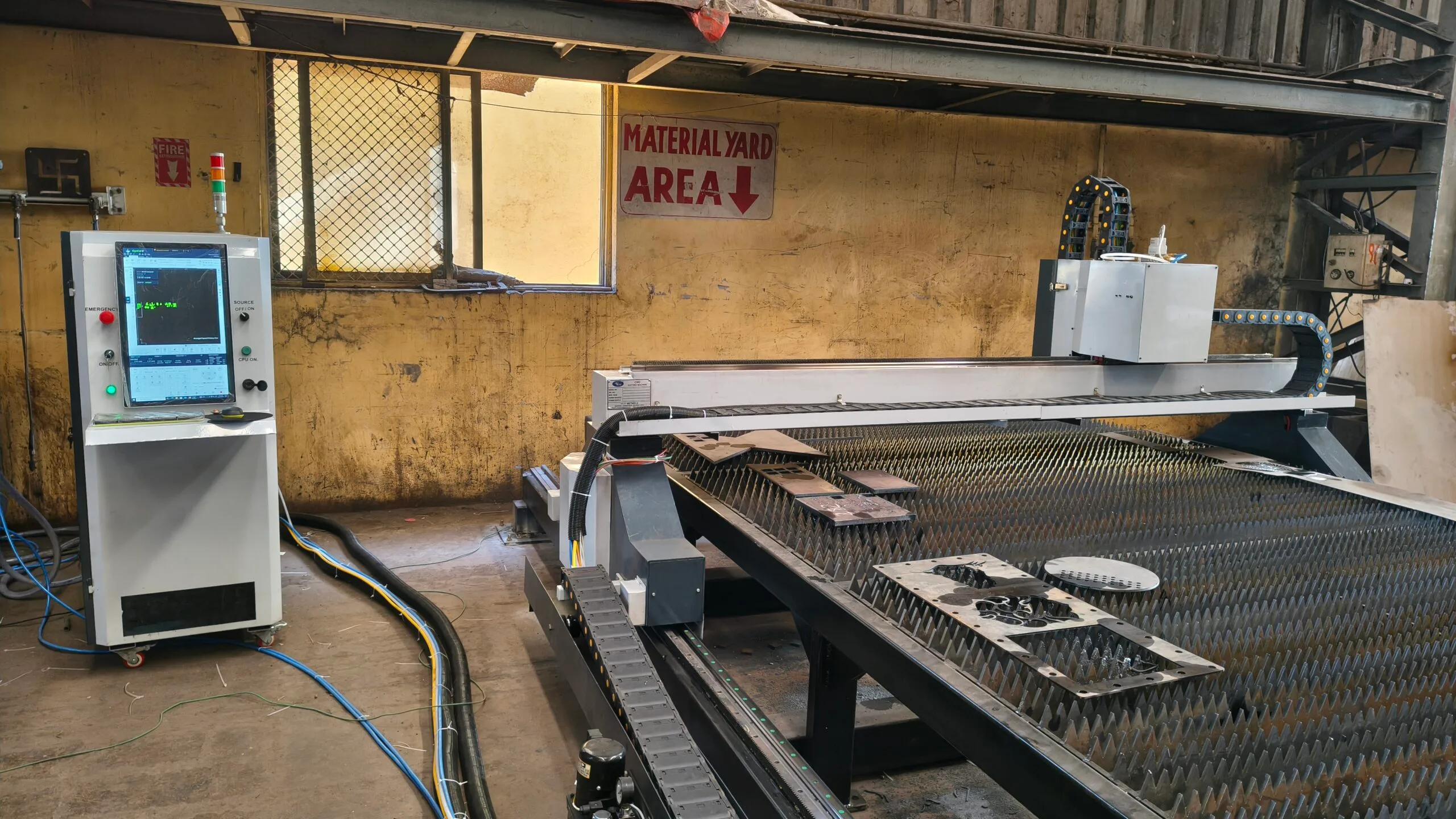

Modern, profitable fabrication requires minimizing manual intervention and eliminating human error. The Metweld Gantry Laser operates on a fully advanced, CNC-controlled system designed for the modern smart factory.
Integrated with powerful, intelligent CAD/CAM nesting software, the machine automatically calculates the most efficient cutting paths and material layouts to maximize your steel yield. Features like automatic edge finding, capacitive height sensing, and automated gas pressure control mean the machine requires minimal manual oversight once the program is initiated. This deep automation dramatically reduces your reliance on manual labor, slashes setup times, increases your daily production speed, and maximizes your overall operational efficiency.
A heavy industrial laser is a significant capital expenditure. You expect it to deliver a high return on investment for decades, not just years. Because the gantry structure intelligently distributes mechanical stress and weight evenly across two robust side rails rather than concentrating it on a single, vulnerable pivot point, the machine experiences significantly less mechanical wear and tear.
Furthermore, critical components like linear guides and drive racks are heavily protected from the harsh realities of metal dust and cutting fumes by automated lubrication systems and heavy-duty protective covers. The Metweld Gantry Laser is incredibly durable, highly rugged, and engineered from the ground up to withstand the punishing, uncompromising realities of long-term industrial use.
Metweld Gantry CNC Lasers have become the trusted, heavy-duty backbone for manufacturers pushing the limits of steel fabrication. Our machines are the ultimate solution for:
Pre-Engineered Buildings (PEB): Rapid, highly accurate processing of exceptionally long structural rafters, heavy-duty base plates, towering structural columns, and precision connection cleats.
Heavy Machinery & Earthmoving: Effortlessly cutting the thick, high-tensile carbon steel plates required for manufacturing robust construction, agricultural, and mining equipment.
Shipbuilding & Offshore Platforms: Processing oversized marine-grade steel sheets with the strict, uncompromising accuracy requirements of the maritime industry.
Bridge & Infrastructure Construction: Delivering massive structural components with the exact dimensional tolerances and pristine edge quality required by national and international infrastructure codes.
With over four decades of deep-rooted expertise in welding automation, heavy machinery manufacturing, and precision engineering, Metweld doesn’t just assemble off-the-shelf machines; we architect comprehensive manufacturing solutions. When you purchase a Metweld Gantry CNC Laser, you are backed by a legacy brand that fundamentally understands the devastating financial cost of factory downtime.
Proudly Manufactured in India, our heavy-duty machines are supported by a rapid-response, comprehensive pan-India service network. From the initial facility consultation and custom bed sizing to professional installation, rigorous operator training, and lifetime technical support, our dedicated engineers ensure your production line never stops running. We build machines that work as hard as your team does.
